CH-FRU – Flux Processing

Created On
Last Updated On
byLukas Hörtnagl
Print
You are here:

2022

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-205042
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)

2021

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-205131
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)

2020

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-205325
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-202101
  • Level-1 ID: Level-1_FR-20210418-162445
  • Level-4 ID(s):
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2020_1 (complete year)
  • Instruments: R350, IRGA75
  • Scripts: BICO v0.5.0, FLUXRUN v0.5.0, DIIVE v0.17.0
  • FLUXNET upload: 19 Apr 2021
  • Notes:
    • 19 Apr 2021 upload complete year, correction 25 May 2021



  • Final Flux Version: FF-202008
  • Level-1 ID: Level-1_ID2020-08-11T233528
  • Level-4 ID(s):
    • check
  • Setup: Setup since 2005
  • Time Period(s): 2020_1 (up until incl. 30 Jun 2020)
  • Instruments: R350, IRGA75
  • Scripts: FCT v0.9.5 with EP 7.0.6, Amp v0.16.0
  • FLUXNET upload: 13 Aug 2020
  • Notes:
    • Fluxes were re-calculated and now include all fluxes until 30 Jun 2020, needed for ICOS Winter 2020 Initiative.
    • For more info see here: CH-MULTI / FF-202008.



  • Final Flux Version: FF-202005
  • Level-1 ID: Level-1_ID2020-06-01T144201
  • Level-4 ID(s):
    • none
  • Setup: Setup since 2005
  • Time Period(s): 2020_1 (up until incl. 12 May 2020)
  • Instruments: R350, IRGA75
  • Scripts: FCT v0.9.5 with EP 7.0.6
  • FLUXNET upload: most likely no upload
  • Notes:
    • Data includes fluxes for 2020 so far (incl. 12 May 2020).
    • For more info, see here: CH-FRU / FF-202005

2019

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_CH-FRU_FR-20230425-205432
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-202005
  • Level-1 ID: Level-1_ID2020-05-31T135334
  • Level-4 ID(s):
  • Setup: Setup since 2005
  • Time Period(s): 2019_1, 2019_2 (results were merged)
  • Instruments: R350, IRGA75
  • Scripts: FCT v0.9.5 with EP 7.0.6, Amp v0.16.0
  • FLUXNET upload: 13 Aug 2020
  • Notes:

2018

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-205753
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)





  • Final Flux Version: FF-201902
  • Level-1 ID: Level-1_ID2019-03-03T030626
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
  • Setup: Setup since 2005
  • Time Period(s): 2018_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.86, EP 6.2.0 (Level-1)
  • FLUXNET upload: 29 Mar 2019
  • Notes:

2017

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-205849
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-202008
  • Level-1 ID: Level-1_ID2020-08-14T114135
  • Level-4 ID(s):
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2017_1
  • Instruments: R350, IRGA75
  • Scripts: FCT v0.9.6 with EP 7.0.6, Amp v0.16.0
  • FLUXNET upload: 15 Aug 2020
  • Notes:



  • Final Flux Version: FF-201902
  • Level-1 ID: Level-1_ID2019-03-03T030355
  • Level-4 ID(s):
  • Setup: Setup since 2005
  • Time Period(s): 2017_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.86, EP 6.2.0 (Level-1)
  • FLUXNET upload: 29 Mar 2019
  • Notes:
    • Known issues: Fluxes have not been corrected for the Wrong Calibration Gas 2017 issue (unknown at the time). See here for affected time periods: Setup since 2005.
    • There are erroneous flux data between 2017-06-09 00:30 and 2017-06-12 11:00 and then again between 2017-06-12 18:00 and 2017-06-16 11:00. Therefore, I manually set all qc_ flags for co2_flux, h2o_flux and LE to bad data (flag 2) in QC-20190310-150455 (Level-2). -LH

There are erroneous flux data between 2017-06-09 00:30 and 2017-06-12 11:00 and then again between 2017-06-12 18:00 and 2017-06-16 11:00. Therefore, I manually set all qc_ flags for co2_flux, h2o_flux and LE to bad data (flag 2) in QC-20190310-150455 (Level-2). -LH



2016

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-205953
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201902
  • Level-1 ID: Level-1_ID2019-03-03T030144
  • Level-4 ID(s):
  • Setup: Setup since 2005
  • Time Period(s): 2016_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.86, EP 6.2.0 (Level-1)
  • FLUXNET upload: 29 Mar 2019
  • Notes:
    • Known issues: Fluxes have not been corrected for the Wrong Calibration Gas 2017 issue (unknown at the time). See here for affected time periods: Setup since 2005. However, this issue only affects the last approx. 4 weeks of the year, a correction might therefore not be worthwhile since this has virtually zero impact on CO2 budgets etc.
    • Level-1: The plotting of the full_output file was done in a separate step due to a min/max error during histogram creation in FCT 0.86. I simply added a try-except clause in the histogram code and that solved the problem (i.e. it is still FCT 0.86, but in this case with the clause, I did not give a new version number here because it only affects plotting). This clause will be added in future versions of FCT starting with FCT 0.88.

2015

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-210052
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-07-02T110929
  • Level-4 ID(s):
  • Setup: Setup since 2005
  • Time Period(s): 2015_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes:
    • June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

2014

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-210440
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-07-02T110920
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2014_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes:
    • June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

2013

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-210817
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-07-02T110910
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2013_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes:
    • June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

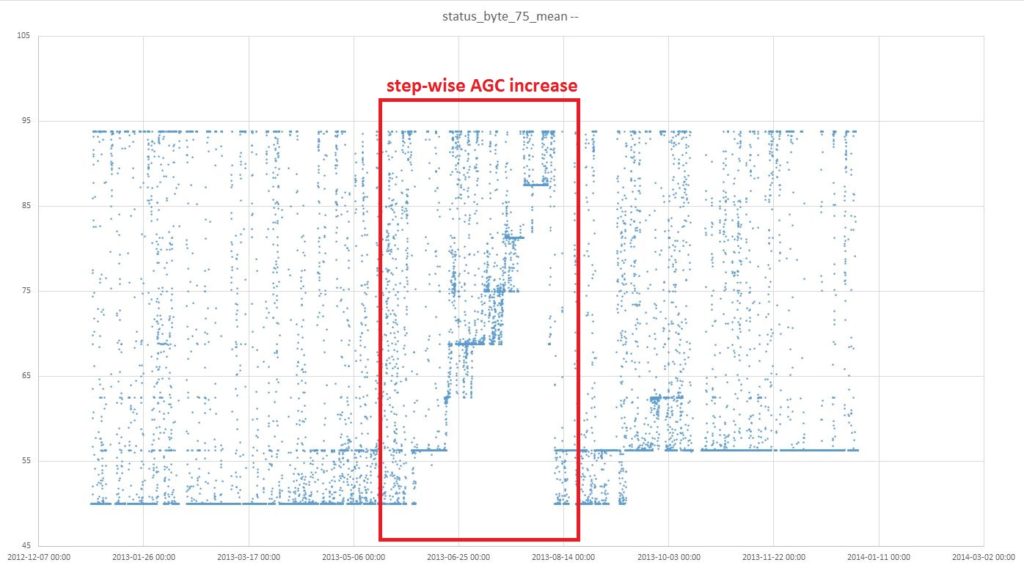

    • Regarding QC: from 2013-06-24 until 2013-08-09: problems with AGC. AGC was not considered during this time period. AGC increased step-wise over a approx. 2-month period

CH-FRU FF-201606: From 2013-06-24 until 2013-08-09: problems with AGC. AGC was not considered during this time period. AGC increased step-wise over a approx. 2-month period



2012

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-220357
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-07-02T110901
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2012_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes:
    • June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

2011

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-220741
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-06-30T213950
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2011_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes:
    • June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

2010

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230425-221418
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-06-30T213944
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2010_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes:
    • June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4
    • Exception 2009-08-20 until 2010-03-09: problem with sonic w –> this problem results in problematic values for H. It is recommended to not use fluxes during this period. Flux values/flags/random error for CO2, H2O, LE, H and Tau were manually set to -9999 in the *_QC_FINAL_FLAG_* file in folder 10_FINAL_QC of the respective year. Fluxes also set to -9999 in ghg-europe file. – LH 2016-07-02
    • See plots below (2009)

2009

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230428-010024
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-06-30T213938
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2009_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes:
    • June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4
    • Exception 2009-08-20 until 2010-03-09: problem with sonic w –> this problem results in problematic values for H. It is recommended to not use fluxes during this period. Flux values/flags/random error for CO2, H2O, LE, H and Tau were manually set to -9999 in the *_QC_FINAL_FLAG_* file in folder 10_FINAL_QC of the respective year. Fluxes also set to -9999 in ghg-europe file. – LH 2016-07-02




CH-FRU / FF-201606: Exception 2009-08-20 until 2010-03-09: problem with sonic w –> this problem results in problematic values for H. It is recommended to not use fluxes during this period. Flux values/flags/random error for CO2, H2O, LE, H and Tau were manually set to -9999 in the *_QC_FINAL_FLAG_* file in folder 10_FINAL_QC of the respective year. Fluxes also set to -9999 in ghg-europe file.

CH-FRU / FF-201606: Exception 2009-08-20 until 2010-03-09: problem with sonic w –> this problem results in problematic values for H. It is recommended to not use fluxes during this period. Flux values/flags/random error for CO2, H2O, LE, H and Tau were manually set to -9999 in the *_QC_FINAL_FLAG_* file in folder 10_FINAL_QC of the respective year. Fluxes also set to -9999 in ghg-europe file.

CH-FRU / FF-201606: Exception 2009-08-20 until 2010-03-09: problem with sonic w –> this problem results in problematic values for H. It is recommended to not use fluxes during this period. Flux values/flags/random error for CO2, H2O, LE, H and Tau were manually set to -9999 in the *_QC_FINAL_FLAG_* file in folder 10_FINAL_QC of the respective year. Fluxes also set to -9999 in ghg-europe file.

2008

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230429-013552
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-06-30T213932
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2008_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes: June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

2007

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230429-013855
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-06-30T213928
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2007_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes: June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

2006

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230429-014233
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-06-30T213921
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2006_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes: June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4

2005

  • Final Flux Version: FF-202303
  • Level-1 ID: Level-1_FR-20230430-150230
  • Level-4 ID(s):
    • –
  • Setup: Setup since 2005
  • Time Period(s): complete year
  • Instruments: R350, IRGA75
  • Scripts: BICO v1.3.0, FLUXRUN v1.2.0 (EddyPro v7.0.9), DIIVE v0.21.0
  • FLUXNET upload: XXX
  • Notes:
    • Processing notes FF-202303: Google sheet
    • NO Angle-of-attack correction, cross-checked sonic orientation, cross-checked sonic height, no self-heating correction (not possible)



  • Final Flux Version: FF-201606
  • Level-1 ID: Level-1_ID2016-06-30T213909
  • Level-4 ID(s):
    • Level-3-4_FLUXNET2015-FN-20161021
    • Level-3-4_FLUXNET2015-FN-20190606-beta-3
    • Level-3-4_PI_FP2020_2005-2019
    • Level-3-4_FLUXNET-WW2020_RELEASE-2022-1_FN-20220209
  • Setup: Setup since 2005
  • Time Period(s): 2005_1
  • Instruments: R350, IRGA75
  • Scripts: FCT 0.74, EP 6.1.0 (Level-1)
  • FLUXNET upload: 4 Jul 2016
  • Notes: June 2016: [2005-2015] v2016-06 calculated with EddyPro 610, FluxCalc 0.74, Anaconda3 v4
